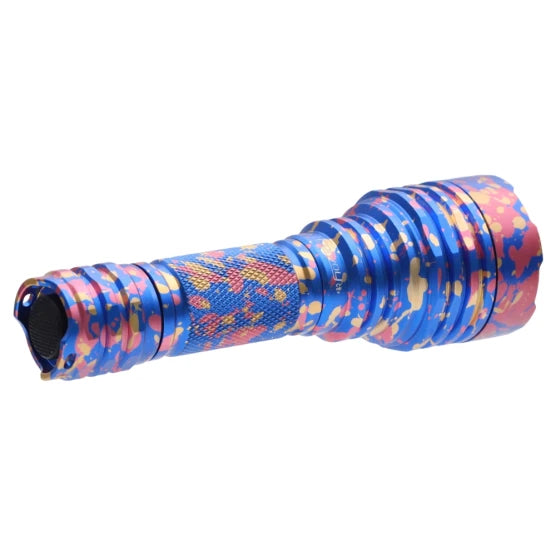

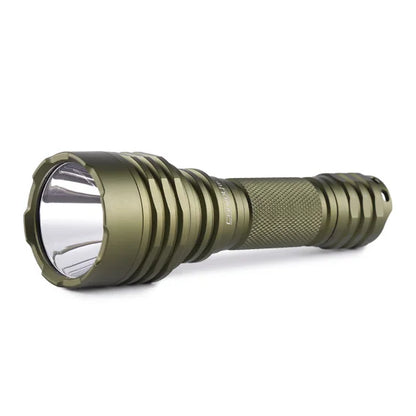

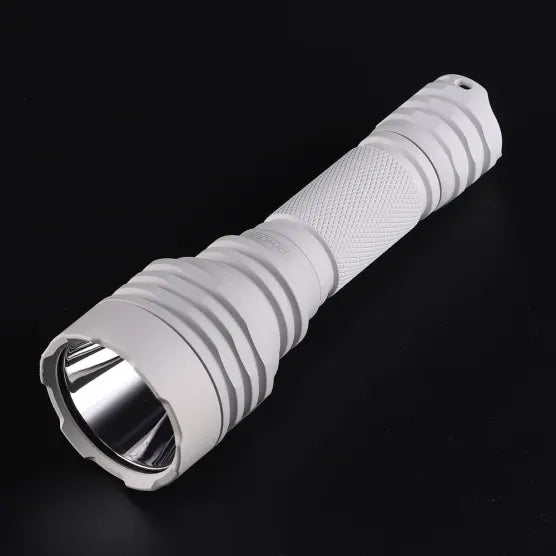

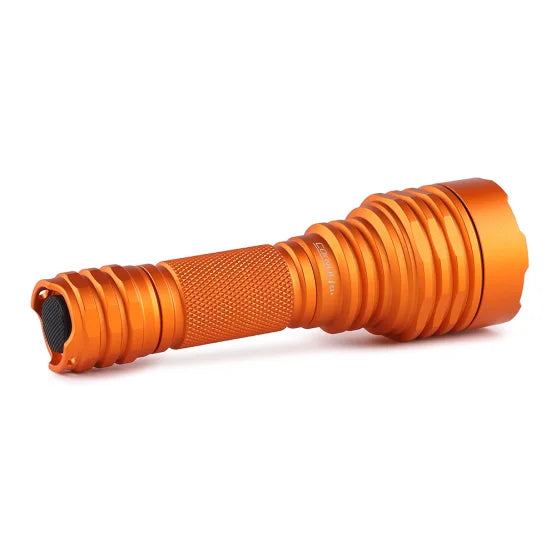

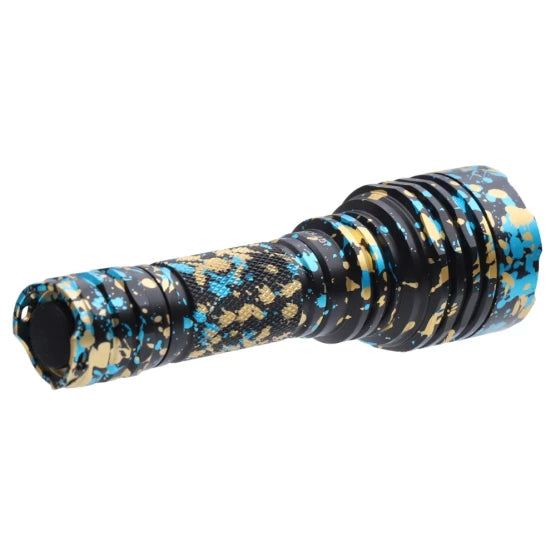

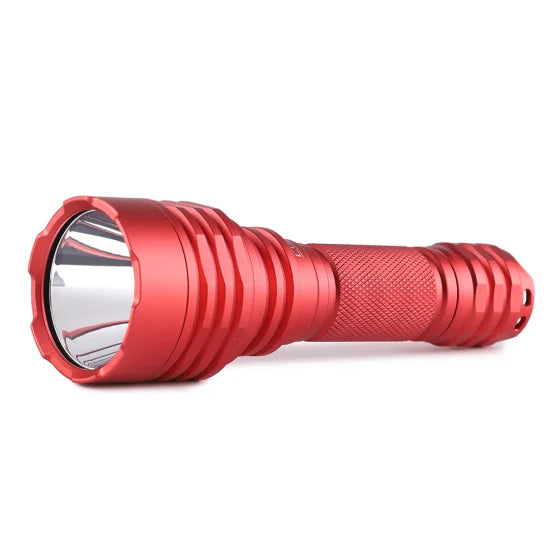

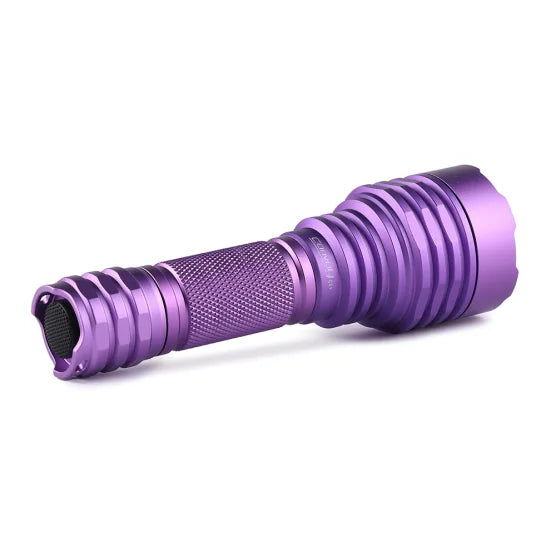

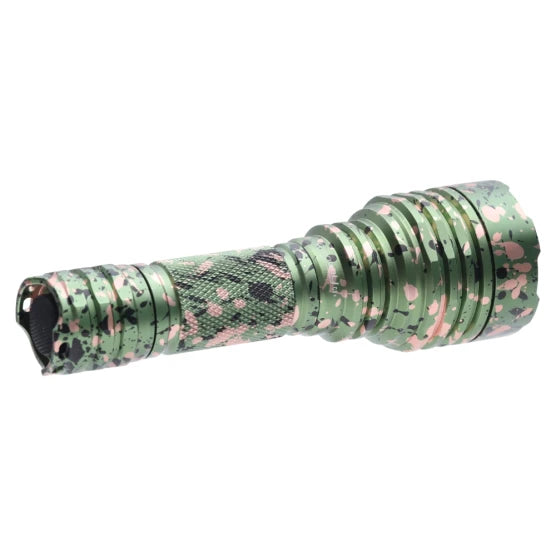

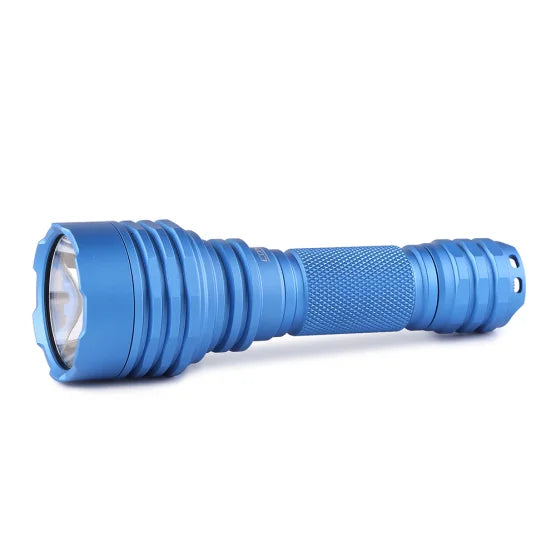

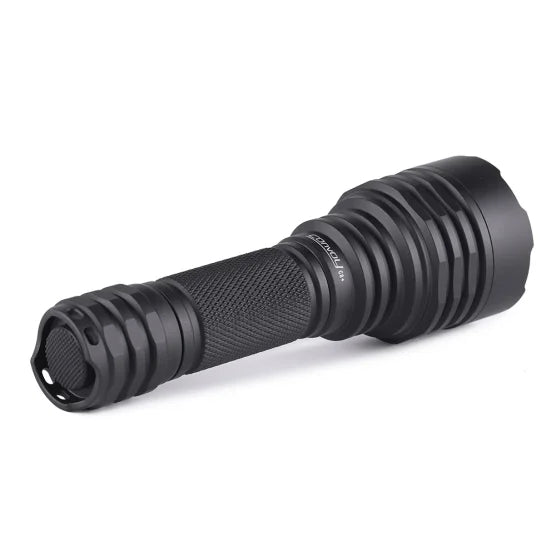

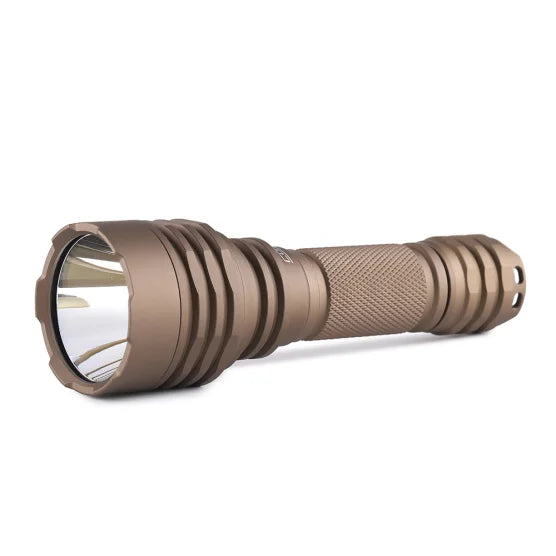

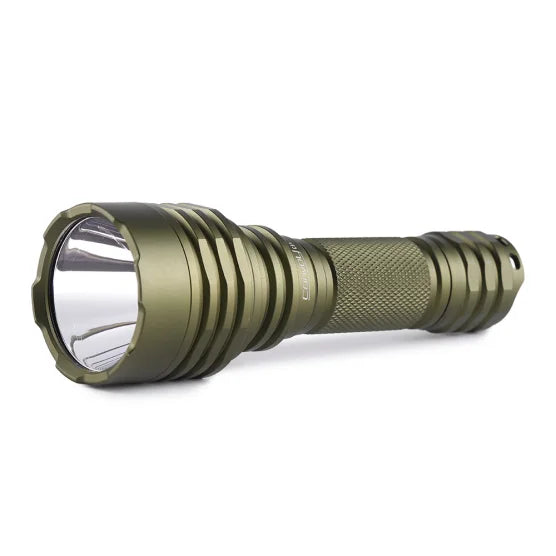

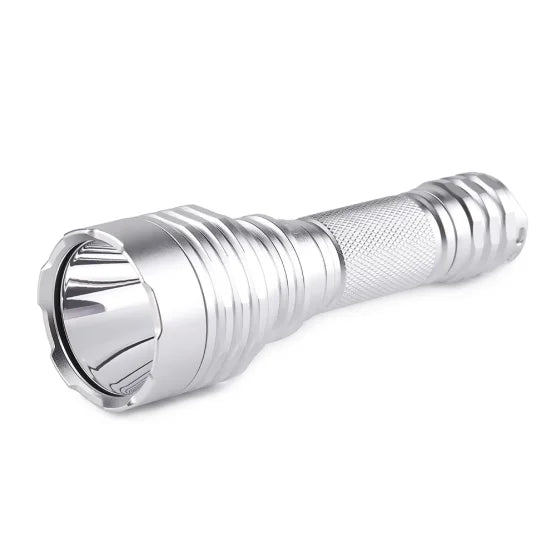

Convoy C8+ 18650 flashlight (Shipped from international warehouse)

All models listed on this page are shipped direct from our international warehouse and will take 7-10 working days to be delivered.

All Flashlights come with the 5A 12 group Buck Driver

Parameters:

Material: Aluminum alloy
Lens: ar-coated glass lens

Reflector type : smooth for SFT40 / 519A / SST20
smooth for all osram LEDs (KW CSLNM1.TG , KR CSLNM1.23, etc. )
orange peel for B35AM

Driver: See below for details.
Tail spring: Phosphor copper gold plated. Can withstand the maximum current of 10A

Low voltage warning: Yes

Reverse polarity protection: Yes
Mode memory: 4modes and 12groups drivers have mode memory
Temperature control function: Yes except for ramping, As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.
Tailstand: Yes
Battery : C8+ runs on 1pcs INR or IMR18650 unprotected lithium battery ,notice that battery is not included

Diameter of head : 44.5mm
Length : 142mm
Diameter of body : 25.2mm
Weight : 145g

Accessory: 1*lanyard

4 modes
0.1%-3%-30%-100%

12 groups:

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)

-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)

-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)

-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)

Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

battery-check instructions:

<2.95V 1 flash,

2.95-3.25V 2 flashes,

3.25-3.55V 3 flashes,

3.55-3.85V 4 flashes,

>3.85V 5 flashes
