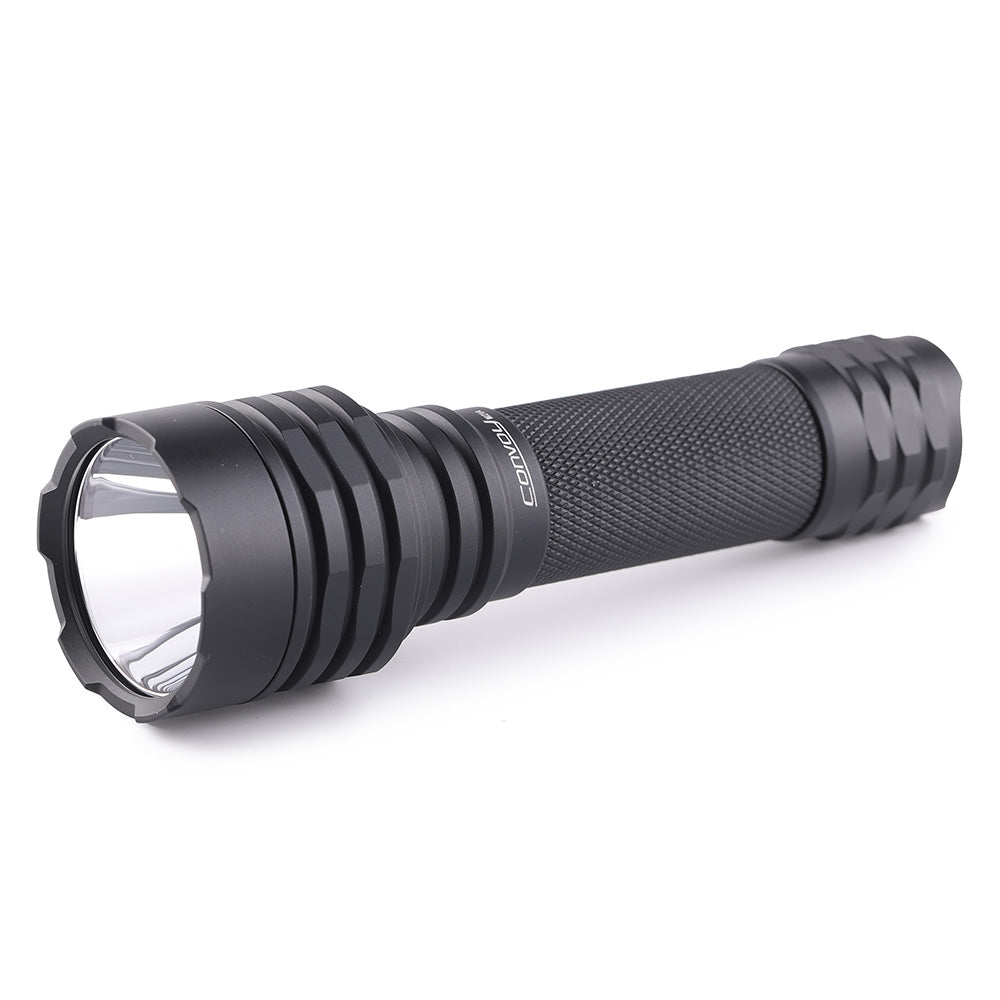

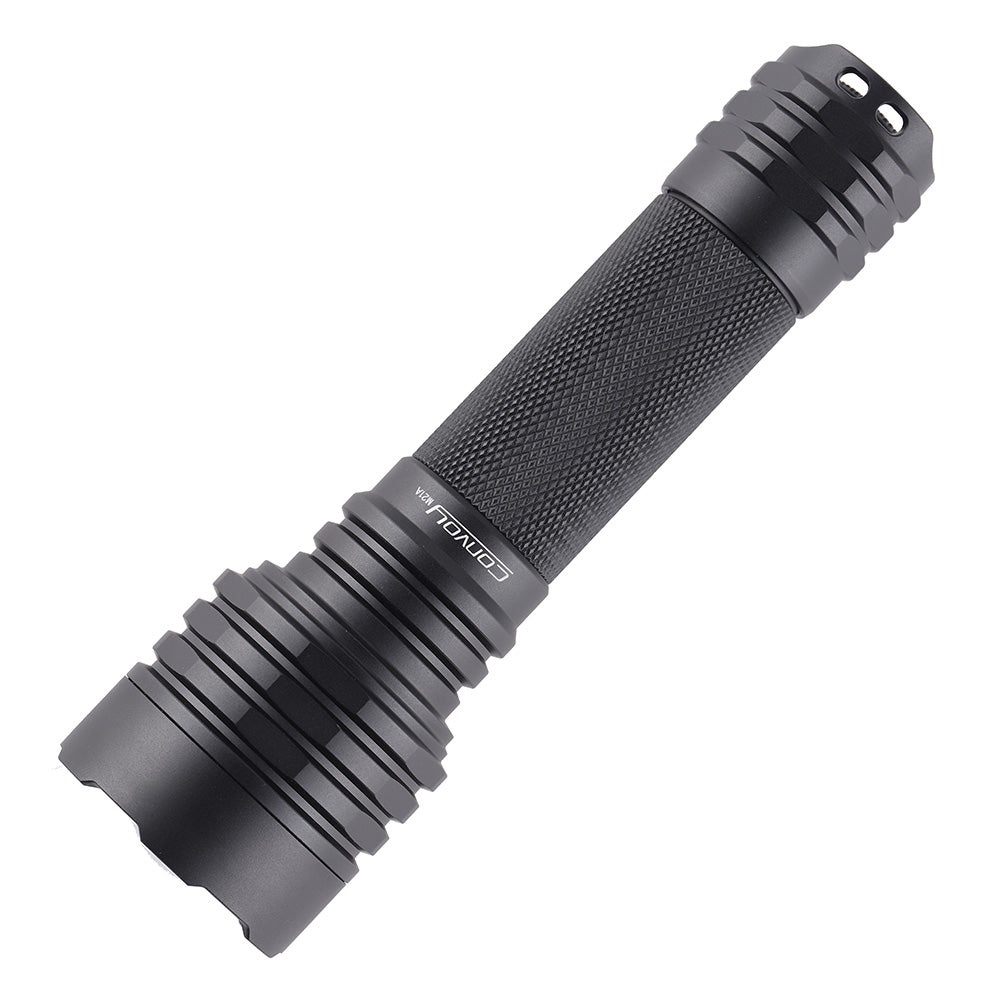

Convoy M21A Luminus SFT-42r 6500k 21700 10a buck driver - BLACK

Convoy M21A Luminus SFT-42r 6500k 21700 10a buck driver - BLACK

£24.99 GBP
£24.99 GBP
Sale Sold out
  • Detail
    Basic introduction
    Construction Material: Aluminum alloy, The surface is treated by anodic oxidation.
    Lens type: green coated glass lens

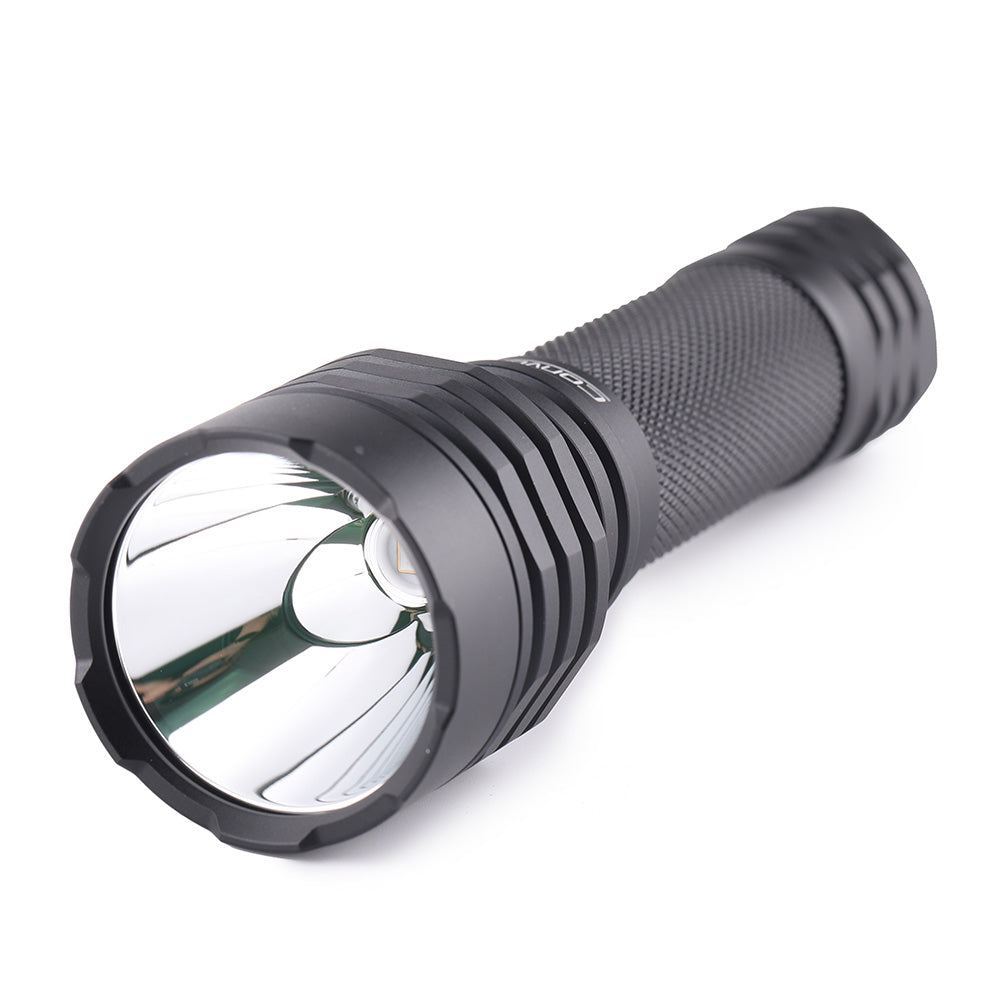

    Reflector: made of aluminium alloy, the reflective surface is vacuum-coated.
    smooth for SFT42R
    LED MCPCB: made of copper.
    DTP thermally conductive structure.
    3.0 W/(m·K) thermal grease below the MCPCB.
    Head structure: integrated type (Best structure for conducting heat, but please note that fast heat transfer does not mean fast heat dissipation, which depends on the surface area of the flashlight.)
    Switch: reverse type, Au-coated phosphor copper spring soldered on the PCB, it can bear max 10A current ,no need to add bypass.

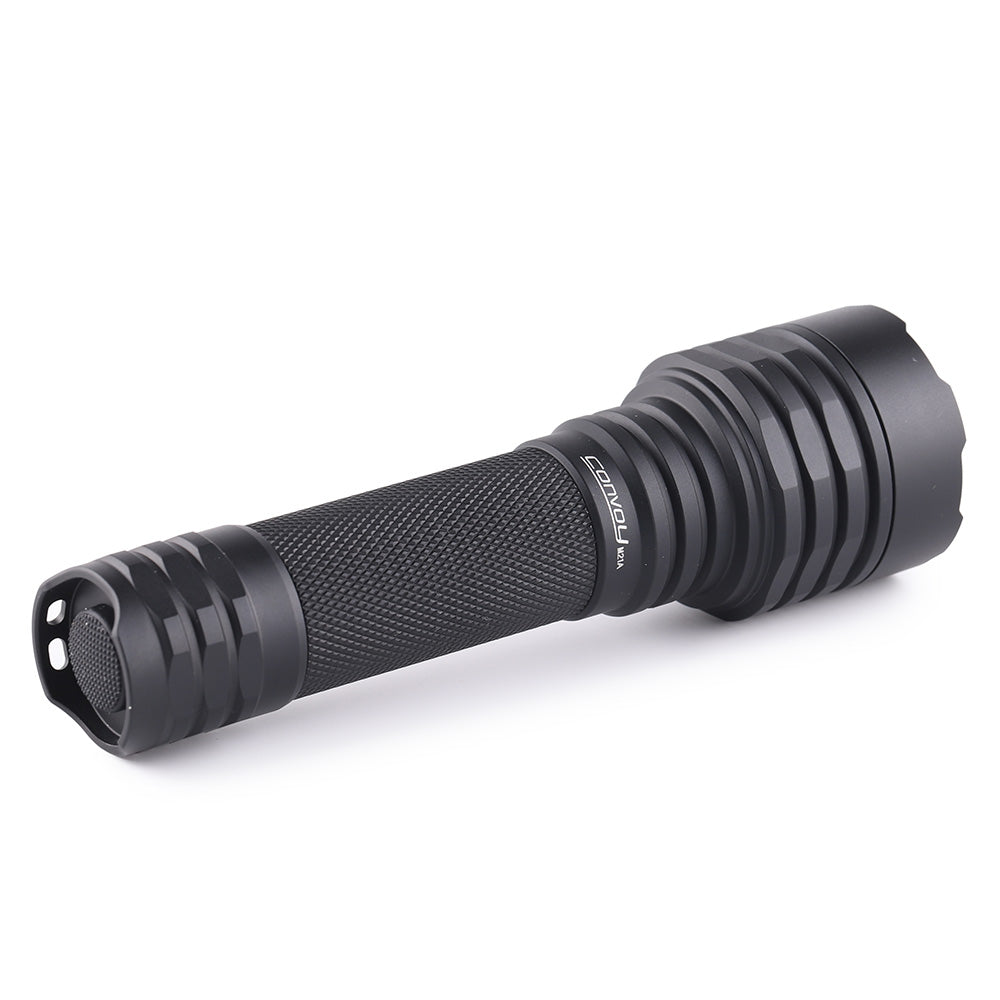

    Tail: The edges are chamfered. The U-shaped groove makes it easy for the thumb to click the silicone button. The single-sided double rope hole makes the rope not affect the handstand of the flashlight.
    Electro&optical parameters Driver output: 3c 10a BUCK DriverMr GGG



    Driver efficiency: 85%-95%
    Mode: See below for details
    Flux: 1000-2000LM
    Illumination distance: ? (estimated by the naked eye,  data for reference)
    ? (ANSI standard)
    Runtime: ?
    Related features Low voltage warning: Yes
    Reverse polarity protection: Yes
    Mode memory: Yes
    Temperature control function： Yes , As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.
    Tailstand: Yes
    About the battery Battery included: No
    Required battery type: unprotected 21700 lithium battery
    Required battery quantity: 1 piece
    Size & weight Length: 155.8mm
    Diameter: 27.3mm
    Weight: net 168g
    gross 189g
    Accessory: 1* lanyard



    Driver modes:

    12 groups:

    1.click the switch to turn the flashlight on/off,tap the switch to select mode

    2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

       Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

           -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

           -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

           -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

           -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

           -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)

           -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)

           -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

           -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

           -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

           -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

           -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)

           -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)

       Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.



    battery-check  instructions:

     <2.95V    1 flash,

    2.95-3.25V  2 flashes,

    3.25-3.55V  3 flashes,

    3.55-3.85V  4 flashes,

    >3.85V     5 flashes
